Q. What are the dimensions of the QED Universal Spade termination?

Answer:

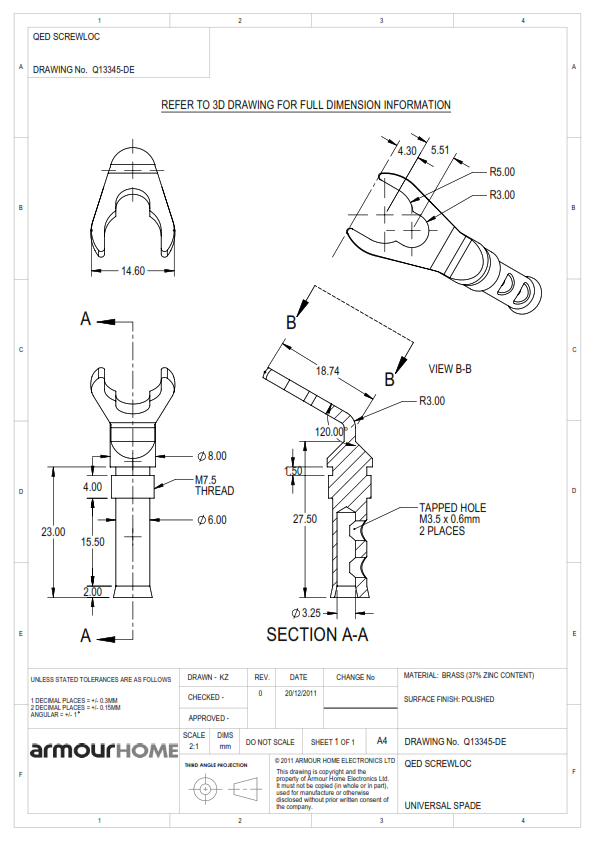

Please find below a dimensioned drawing of the QED Universal Spade termination used in the AirLoc ABS Standard Spade.

QED Standard Spade termination dimensions

​
